| DRYER CAPACITY | 2300 CFM |
| RECOMMENDED | Pair with 500 HP |
| TYPE | Non-Cycling |
| MAX PRESSURE | 230 PSI |
| MAX TEMPERATURE | 140 F |
| POWER | Electric |
| VOLTAGE | 460V/3/60 |
| CONNECTION SIZE | 4" Flange |
| INTEGRAL PRE-FILTER (X) | Coalescing Water & 1 micron particulate |
| INTEGRAL POST-FILTER (Y) | Coalescing Oil 0.01 ppm |
| DIMENSIONS | 43 x 58 x 76 IN |
| WEIGHT | 1532 LB |
| WARRANTY | 1 Year |

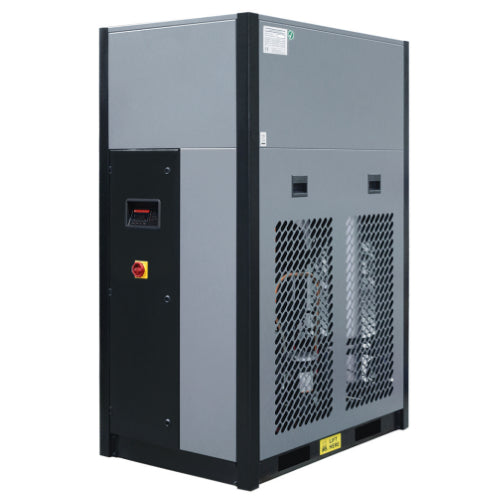

Drytec offers the best refrigerated air dryers in the industry, packed with features to provide high quality, clean, dry filtered air . Eliminate moisture, particulate, and contamination to prevent complications or damage to processes and equipment. The SDE Series of dryers utilizes energy efficient R134a and supplies a constant dew point at all ranges of flow. Most important are the integrated line filters that protect the dryer and provide high quality air, while maintaining a compact and easily serviceable design. The Drytec X Pre-Filter is for water removal and 1 micron particulate, and Y Post-Filter for oil removal down to 0.01 ppm. Take advantage of the cost and space savings from not having to purchase and pipe-in separate line filters. Additionally, the ESD digital controller saves big money by automatically shutting down when the system is not in use.
Drytec SDE air dryers meet various market requirements (ISO 8573 Standards) for many industrial applications. Food and beverage, pharmaceutical, pure air clean rooms, chemical plants, paint spraying, powder coating, sand/shot blasting, packaging, control & instrument air, microchip production, and several others.
